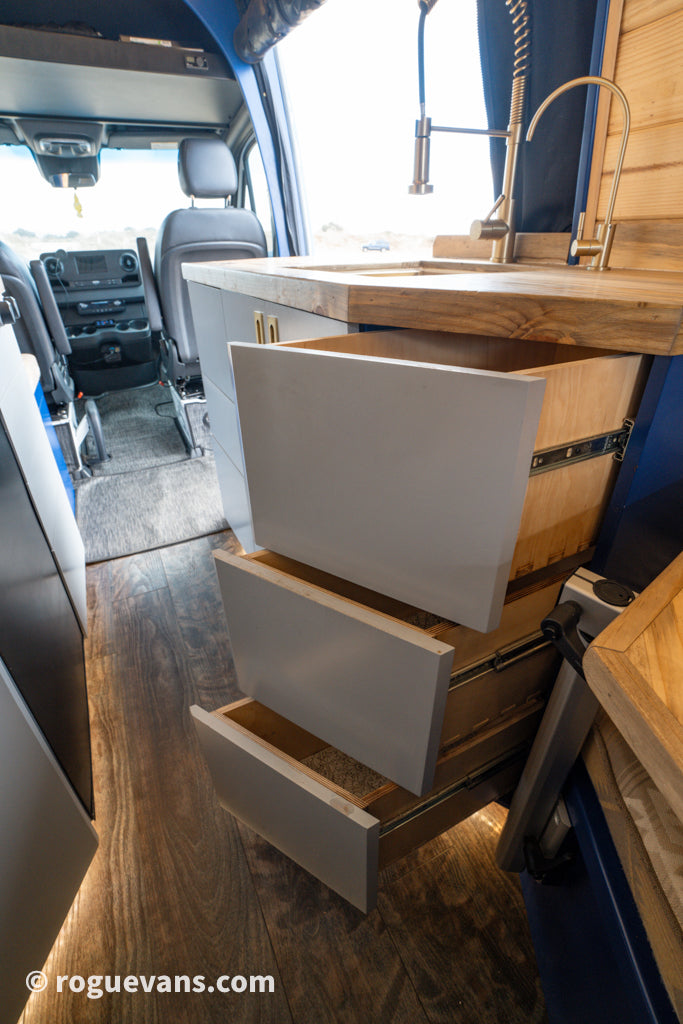

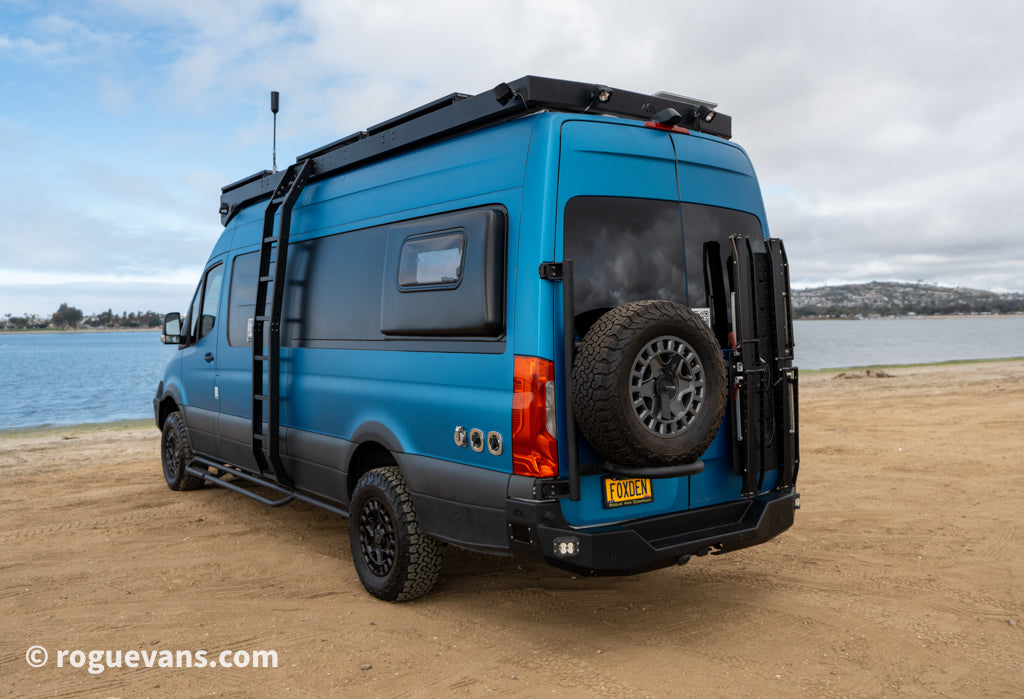

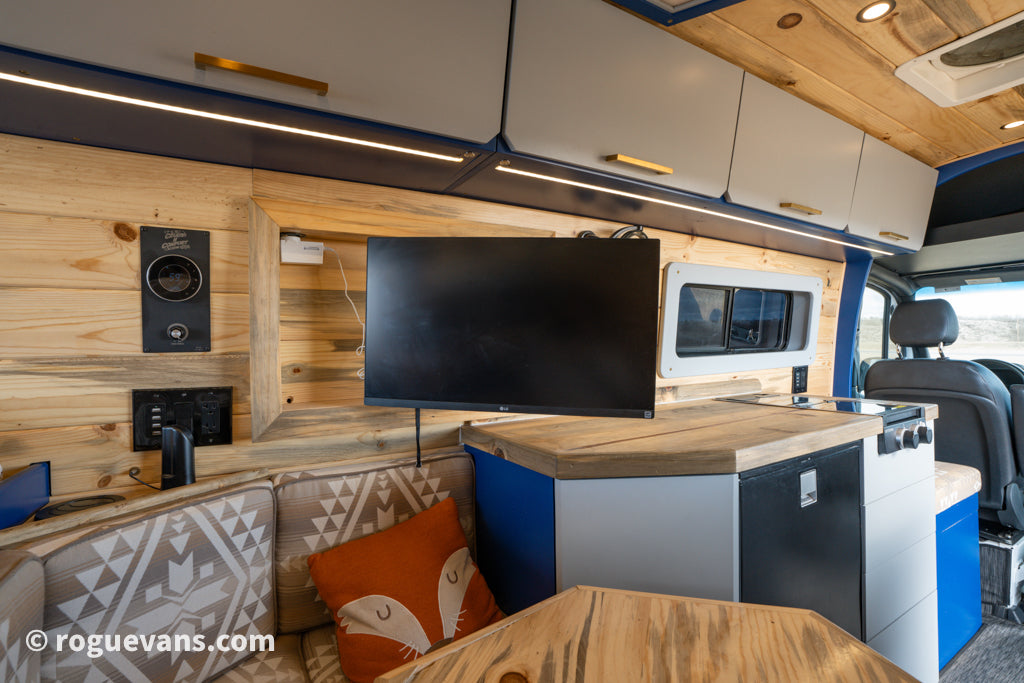

The Fox Den van, manufactured by Rogue Van Company, embodies a unique amalgamation of various design elements and concepts, resulting in an exceptional product. Positioned at the rear, the van showcases flares alongside an array of electrical and plumbing accessories, strategically placed on either side of the bed within the garage area. Subsequently, a hexagonal conversational pit-style bench area, equipped with storage compartments beneath the benches and provision for ventilation for heating and cooling, follows suit. Preceding this, a split kitchen layout is featured, with water facilities located on the passenger side and cooking facilities along with storage provisions on the driver's side. Additionally, the interior boasts 45° pull out drawers and overhead cabinets, complemented by abundant storage nooks and crannies. Noteworthy amenities include a wall-mounted monitor and floor safe, further enhancing the van's functionality and appeal.

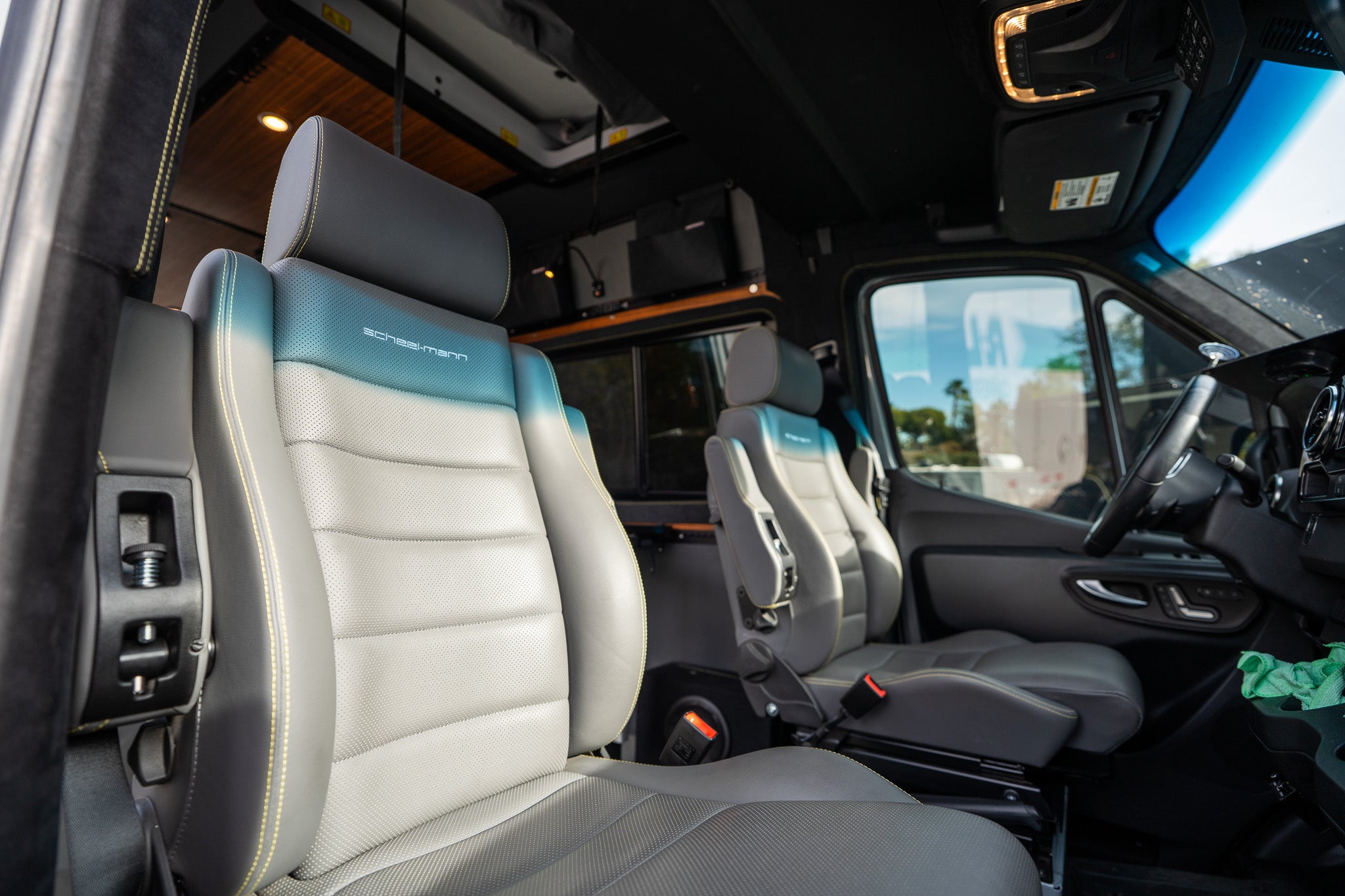

Seating includes driver and passenger swivels with a hexagonal bench area in the middle of the van w/ Lagun table
Interior/Exterior Envelope
Ceiling & Walls: 5" face V notch tongue and groove satin finish Blue pine
Windows: 1st position windows on slider door, pill window driver's first position, rear door windows . AM Auto rear cabin 1033 pill windows on both sides in bed area

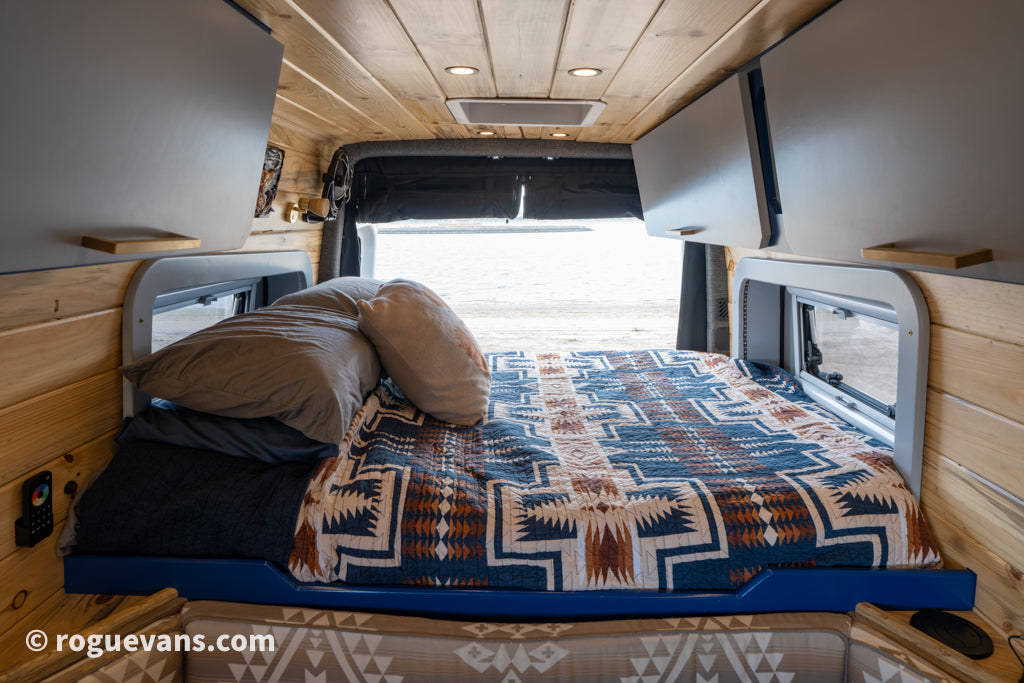

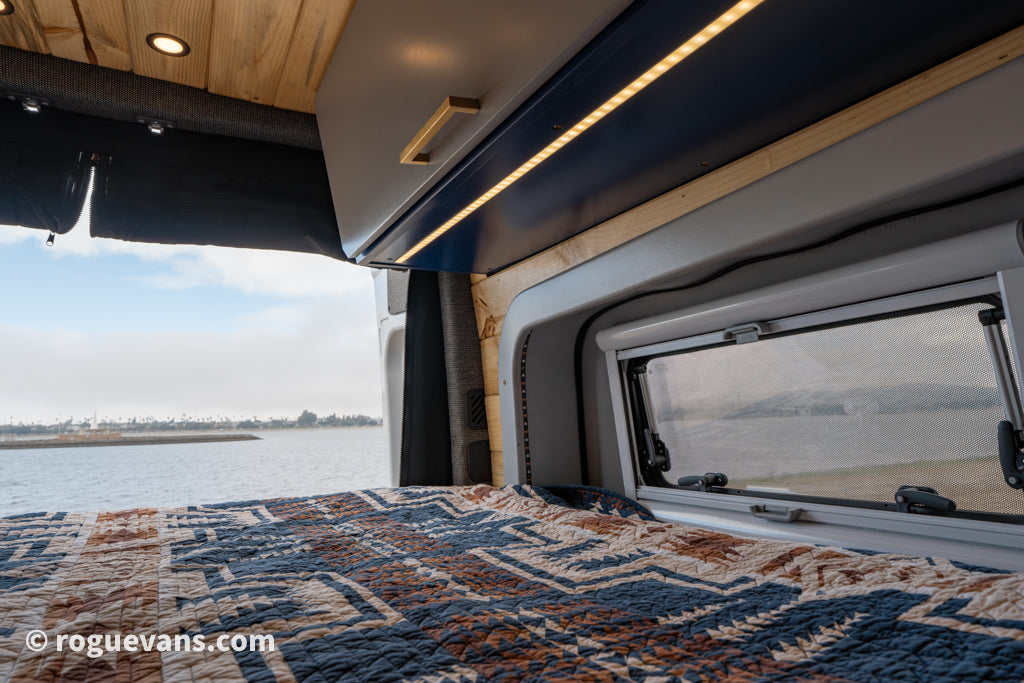

Sleeping: Flarespace bed w/ custom mattress by san diego mattress makers

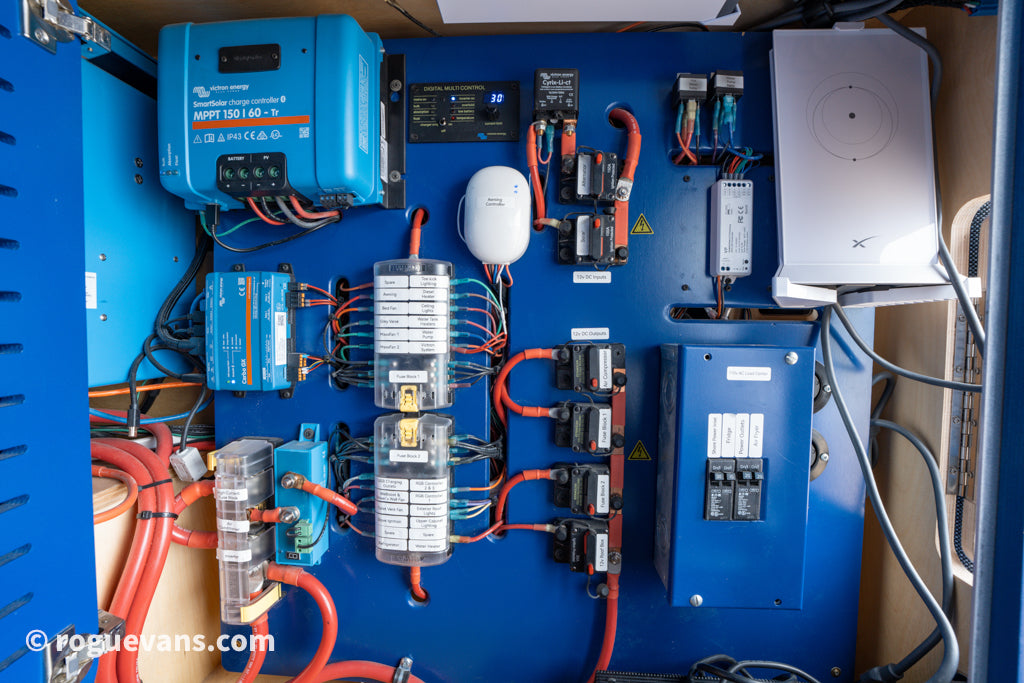

Electrical Systems

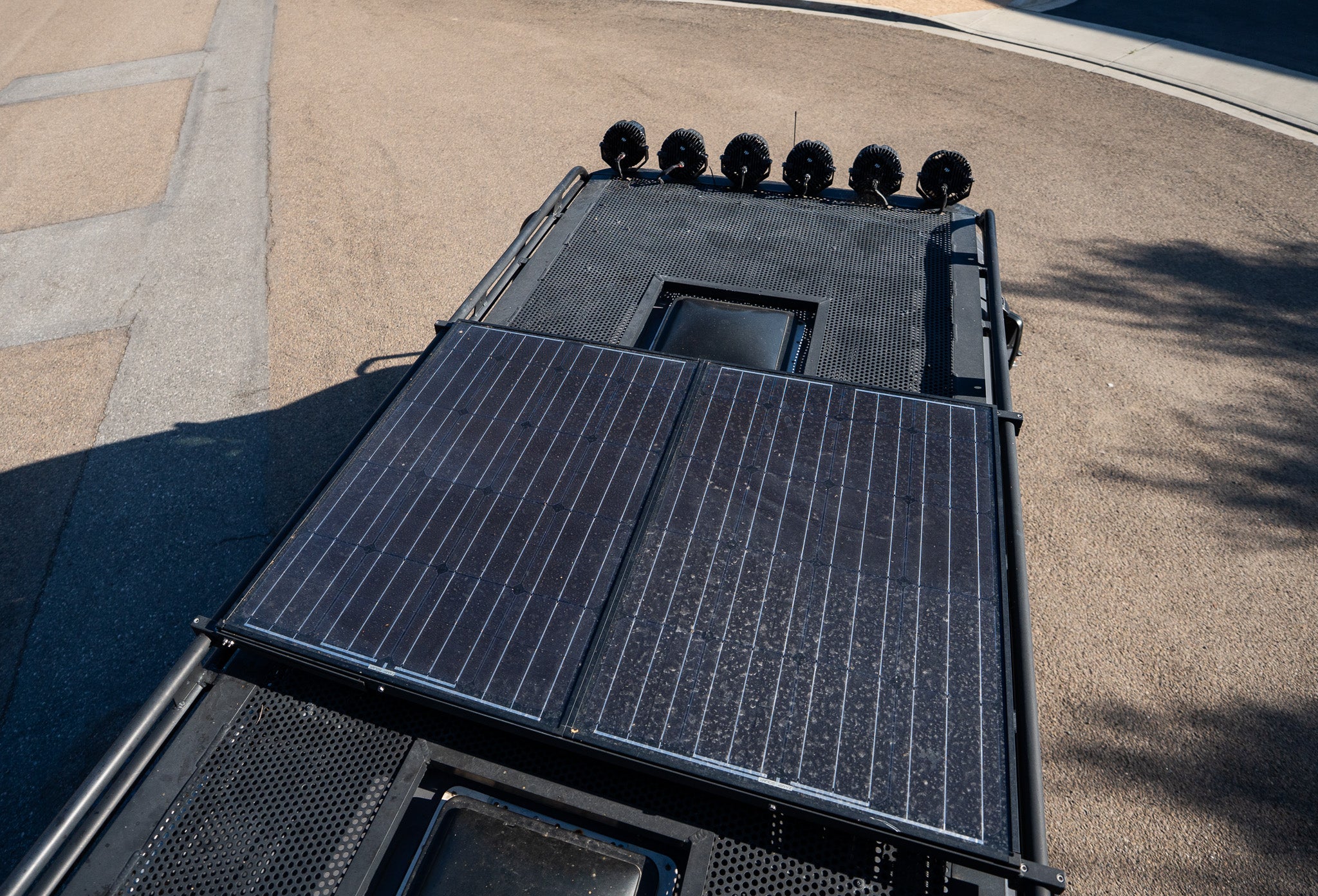

- 900 watts of solar by new powa
- 12v 675 amp hr battery bank by big battery
- Victron multiplus 2k watt inverter, charger and transfer switch
- Victron Energy SmartSolar MPPT 250/70 VE.Can Charge Controller With Bluetooth
- 30 amp marine grade stainless steel shore hookup by Marinco
- Cerbo GX Victron monitoring System
- 4k 12v lithium smart secondary alternator w/ control module
- Victron Smart Shunt bluetooth
- Marine grade MRBF fuse panels and resettable thermal breakers
- 30 amp A/C breaker box
- Dual Blue Sea 12 position D/C fuse block for accessories
Interior Switches & Lighting
- Acegoo recessed ceiling lights, warm white, white finish; dimmable, 1zone
- Marine grade under cabinet lights; at driver side and passenger side upper cabinets
- Custom switch panel w/ latching switches and controls w/ switches for water pumps, grey dump, toe kick lights, cerbo GX, and heater
- RGB lights in bench, flares, and custom fox den ceiling light feature controlled via remote
Interior & Exterior Outlets

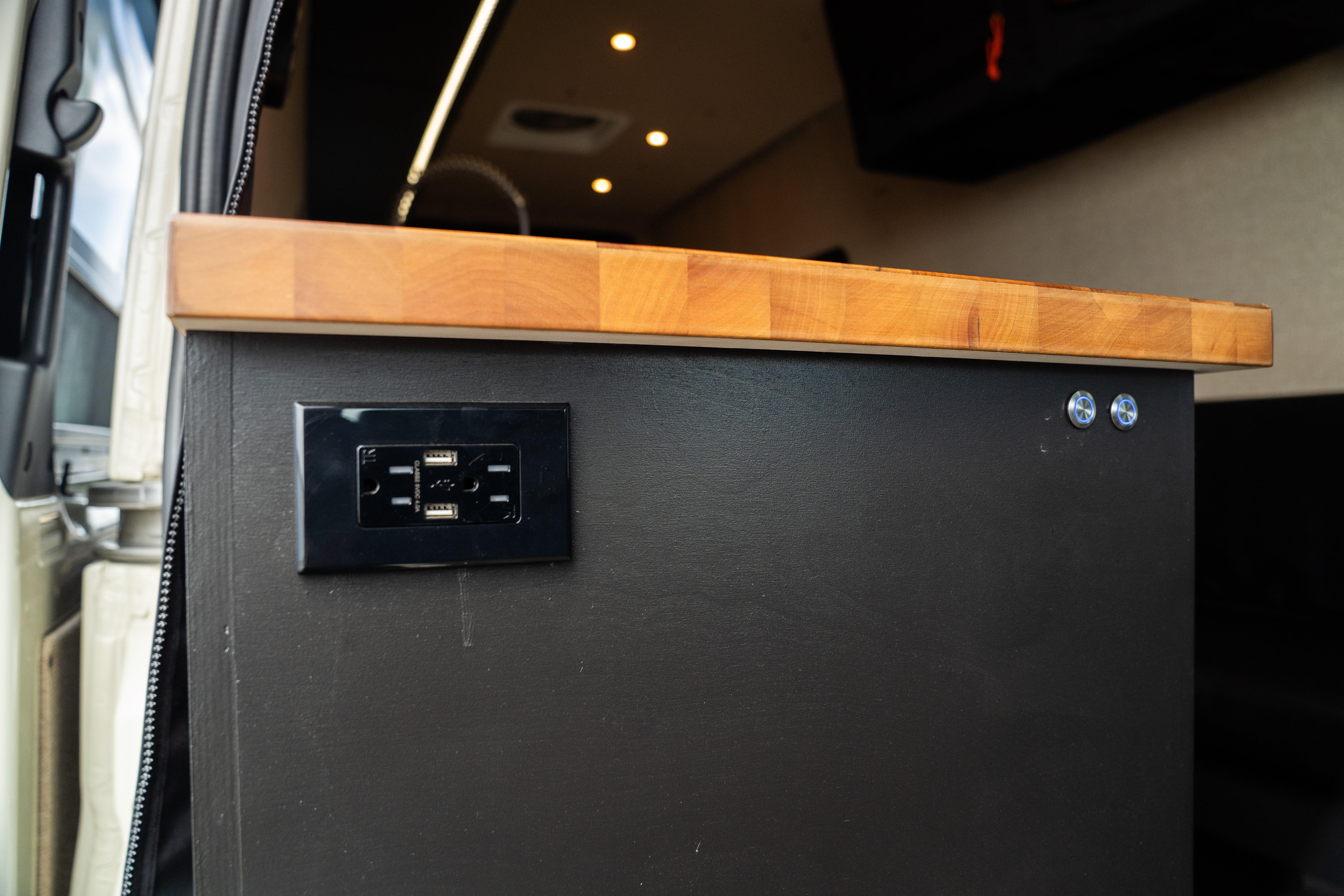

- DC direct usb towers

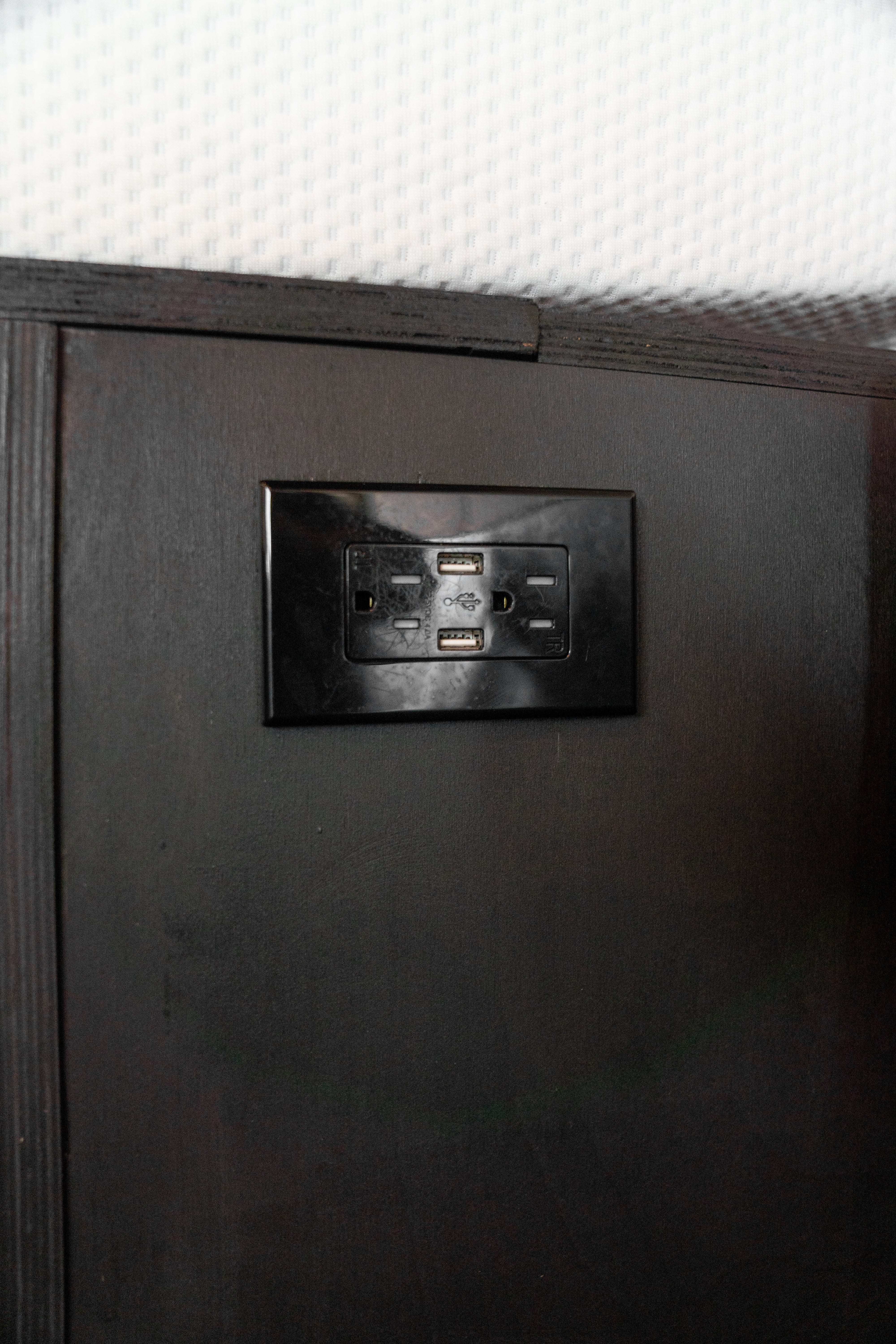

- 110V, 15A valterra interior outlets
- Marinco 30 Amp, 120V exterior outlet on Driver's side for shore power connection

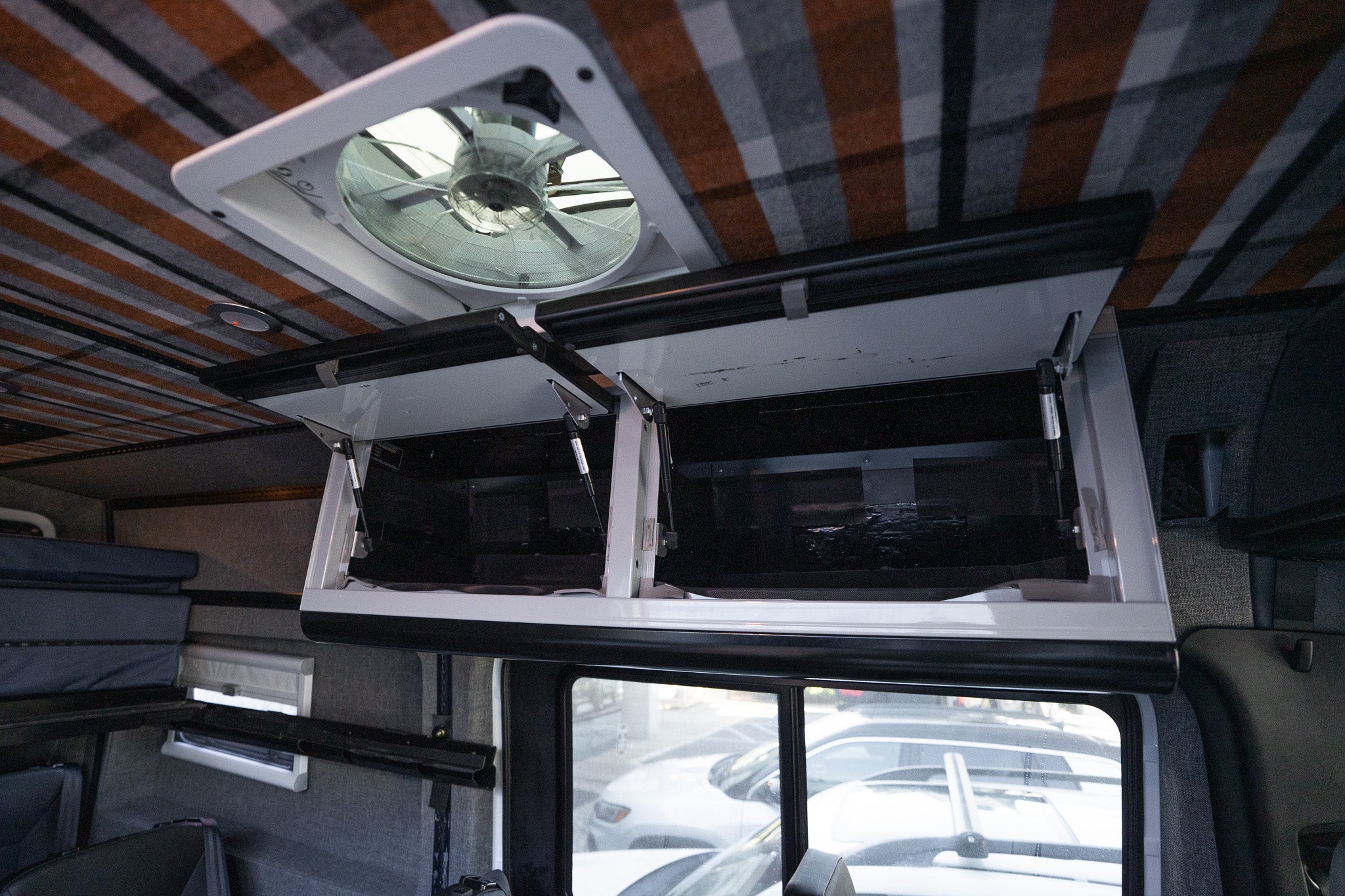

- Air: Dual Deluxe Maxx fan 7500 K w/remote open
- Fuses: Full battery to battery marine fusing on all power connections throughout
Plumbing Systems
- Fresh Water Tank: Spare tire mounted 28 gallon fresh water tank with body mounted fresh water fill
- Grey Water Tank: Custom welded Stainless grey water tank w/ remote open gray gate and 3" RV black water fitting
- Water Pump: 5 GPM Fresh water pump w/ accumulator
- Water Heater: Digital 12v heater by AusJ
Cabinetry & Countertops
- Lower Cabinets: Sink cabinet on Passenger side, fridge cabinet w/ stove on pass side
- Upper Cabinets: Full length either side of vehicle except over passenger bed area
- Bed Side Table: Lagun mount table for day bed system
- Countertop: Custom Beetle Kill Counter
Included Compenents/Appliances
- Exterior: Owl Vans Spare Tire Carrier
- Air Heater: Espar D2 air heater located under Pass seat
- Building Materials: Ceiling, walls, flooring and subfloor, all lumber for bulkheads and cabinetry,
- Appliances: Indel isotherm CR clean touch 130 fridge, Undermount sink and matching faucet, Digital 12v heater by AusJ, 2 maxx fans, cruise n comfort AC
Additional Options
- Window Shades: Custom window shades on all windows

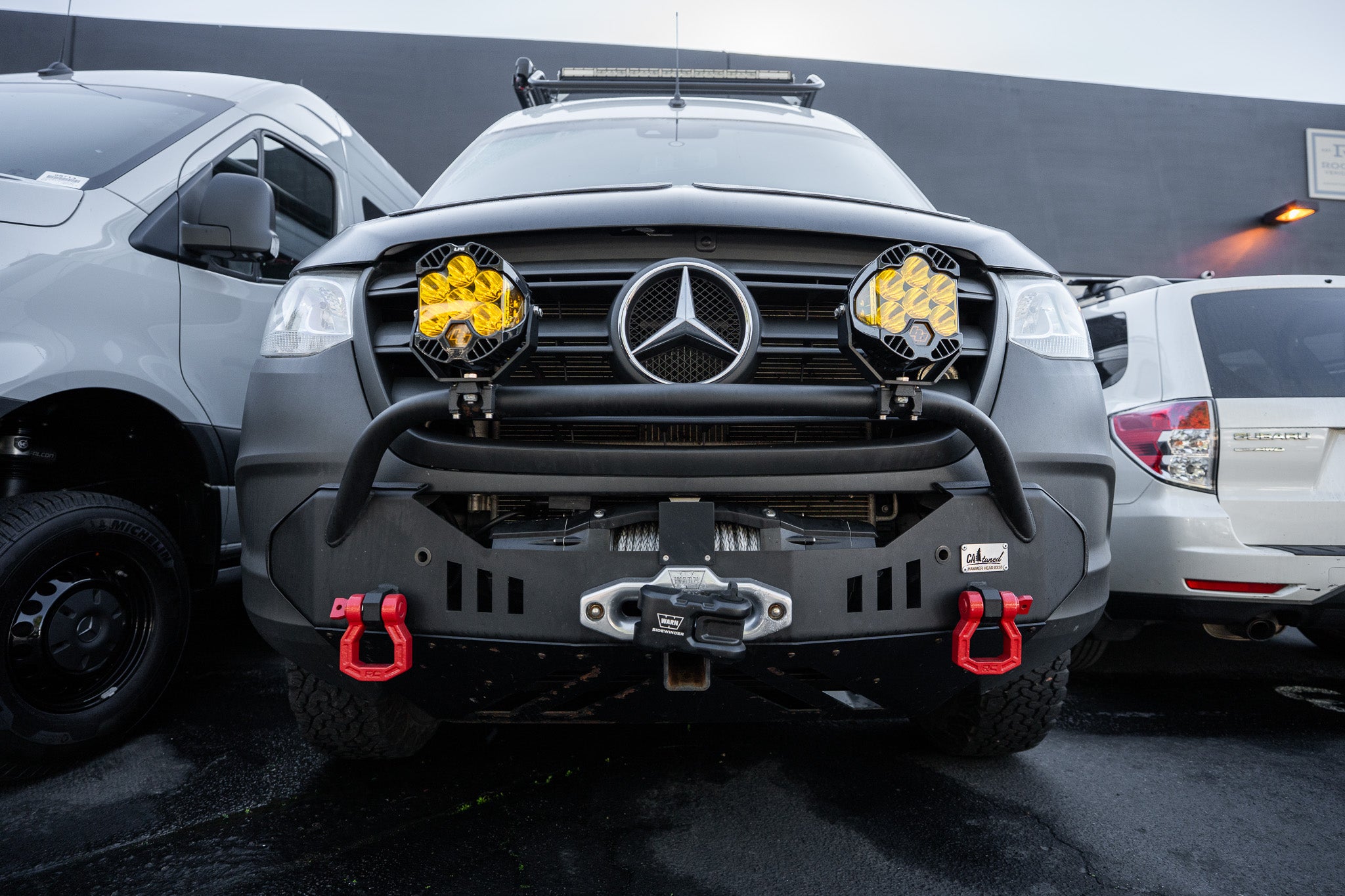

- Winch: Warn Evo 12 s Winch
- WIndows: 2 barn door, 1 driver 1st position, 1 bunk window
- Wrap: Entire van wrapped in blue aluminum vinyl
- Linex: Linex entire under skirt and side plastics of van
- Updated Water Tanks: Custom welded grey tank and spare tire carrier tank
- Custom Upholstery: Custom upholstery for all exposed metal
- Rear Tire Carrier Owl: Spare tire carrier by OWL vans plus install and 180 hinges

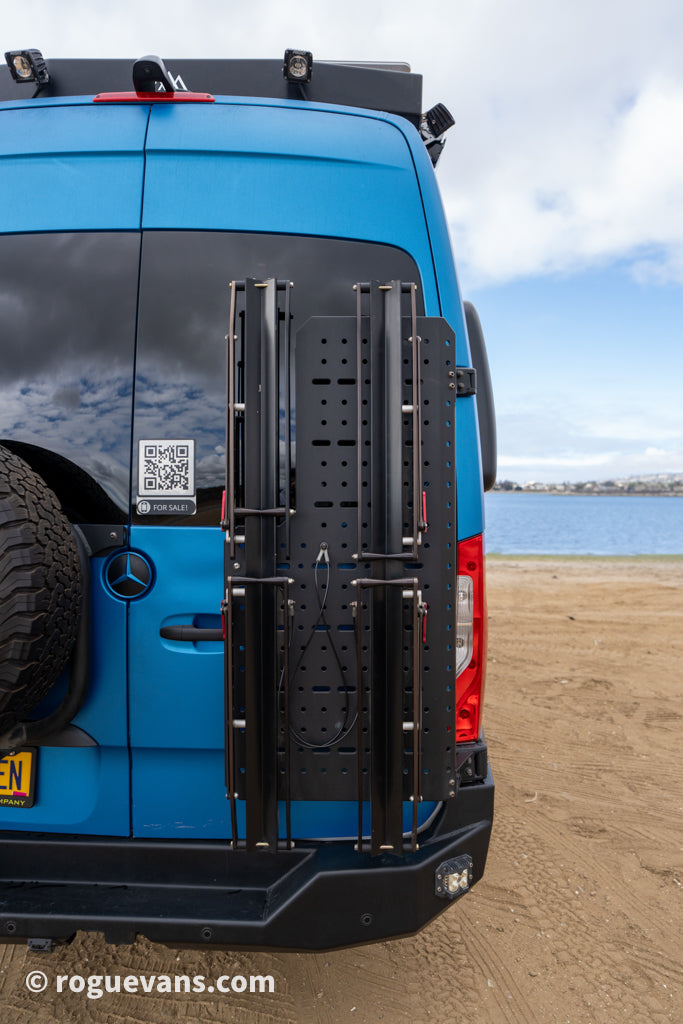

- Rear cargo Carrier OWL: Rear sherpa carrier by OWL install and 2 Bike mounts, spacers and 180 hinges
- Fender Armor: Fender armor by terrawagen plus mondo mud guards
- Window Tint: Full window tint on all glass
- Sirocco 12v Fans: 2 additional Sirocco fans located throughout build
- Onboard Air: ARB on board air plus vs30 VC mount
- Bags on Back: RB components lower door bags
- Fuel Cell Upgrade: S&B 47 gallon extended tank
- Van Compass Suspension: Van Compass 4.3 suspension plus Optirate leaf springs and sway bar

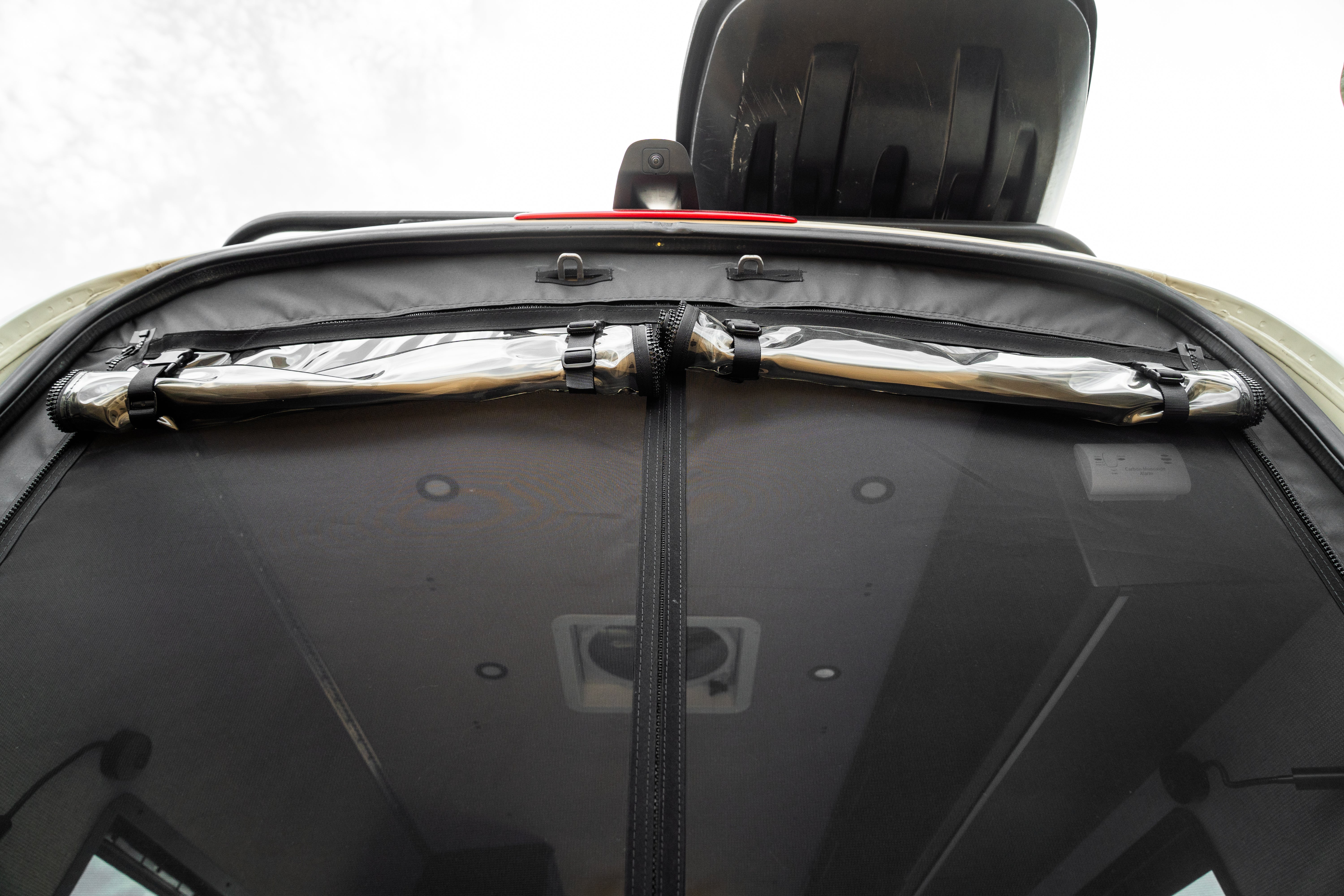

- Rear & Side Screen: True van Screens on sliding door and rear of van
- Tank Pads: Tank warming pads on tanks for thermostatic controlled heating
- 3 Stage Water Filter: 3 stage water filter for drinking water
- Bench Back Storage: Bench back storage pockets with doors and hinge, block off bottom acccess to create compartment
- Starlink: Mobile premium mounted and integrated into vehicle systems
- Inverter Upgrade: 3K Victron Multiplus
- In Floor Safe: Cut in safe in bench flooring
- In Cab Overhead Storage: RB components overhead storage shelf aluminum powder coated
- Custom Accent Lighting Celing
- Exterior 120V Outlet
- Renntech: Custom Tune

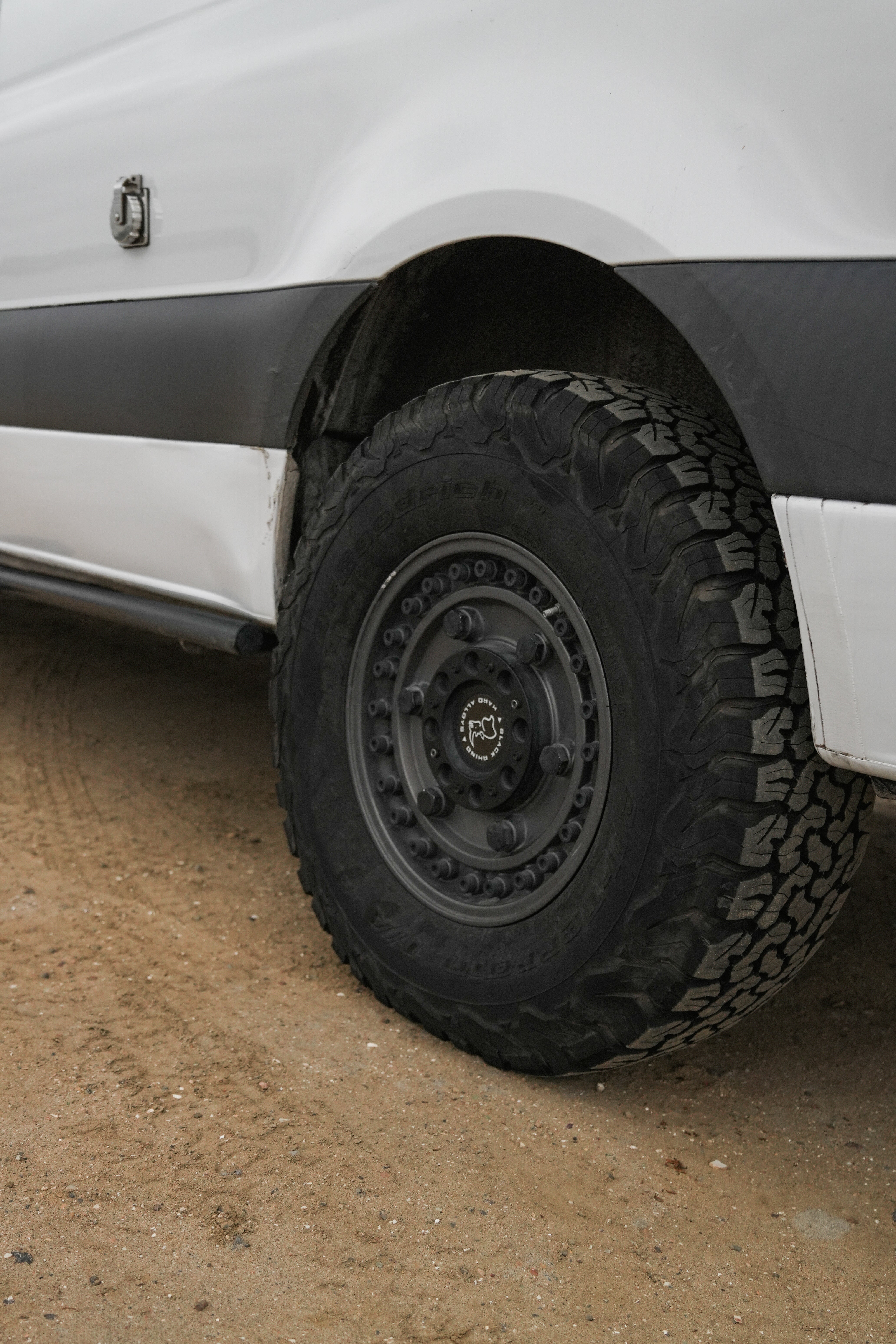

- Wheels: Black Rhino Venture Beadlock wheels x5
- Tires: K02 all terrain load range e 10 ply lt tires 265/70/17
- Winch License Mount
